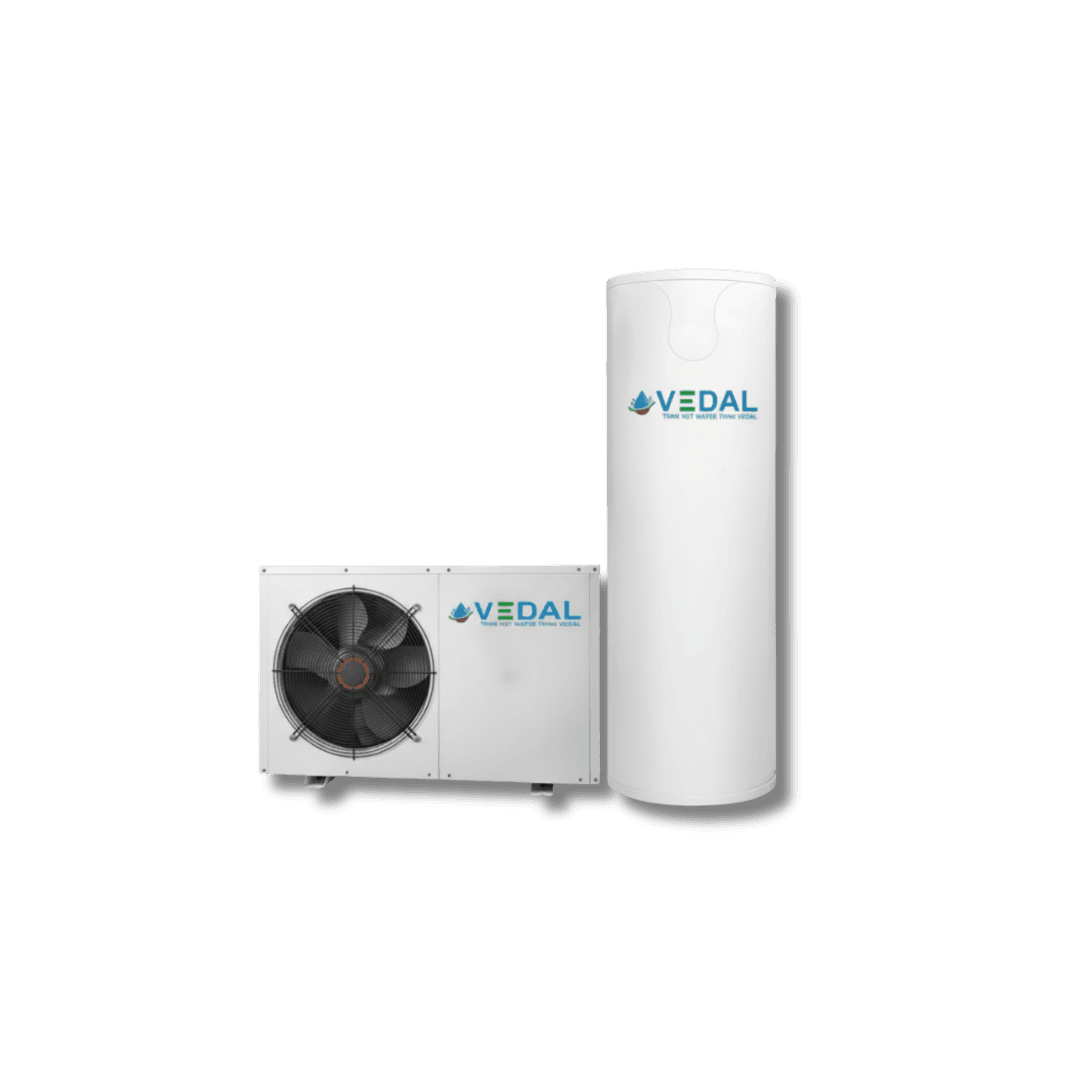

Vedal Domestic Split Heat Pump

Vedal Domestic Split Heat Pump

Revolutionize Your Home Comfort with Vedal

Revolutionize Your Home Comfort with Vedal

FEATURES

Experience a new level of comfort with versatile applications and long-term cost savings

Our energy-efficient split heat pump provides powerful and cost-effective heating

Get 24/7 Hot Water, 365 Days

Upgrade your home’s water heating with the Vedal Domestic Split Heat Pump—an advanced, eco-friendly solution designed for modern households. Using cutting-edge air source technology, Vedal’s heat pump delivers 24/7 hot water while dramatically reducing energy consumption and environmental impact.

One Vedal heat pump is equivalent to planting 7 trees, making it a powerful step towards a greener future.

Domestic Water Circulation Split Heat Pump (VET - 1 HP)

Model

VET - 1 HP

Heating capacity (kW)

3.5

Input power (kW)

0.96

COP

3.65

Rated current (A)

4.39

Max input power (kW)

1.3

Max current (A)

6.0

Rated outlet water temp. (℃)

55

Highest outlet water temp.(℃)

60

Power supply

220V/1Ph/50Hz

Anti-electric shock Rate

I

IP Grade (Level of protection)

IPX4

Refrigerant

R410A

Operation Ambient Temp. (℃)

-7～43

Production capacity (L/H)

100

Water connection

DN20

Water circulation （m³/H）

0.60

Water pressure drop （kPa）

20

Noise (dB(A))

≤50

Net weight/Gross weight(kg)

48/56

Body size(W*D*H)

956×350×550

Loading QTY(20GP/40GP/40HQ)

90/192/192

Compressor type/QTY

GMCC

Condensor type

High efficiency tube in shell heat exchanger

Defrosting

By Sanhua four-way valve

Throttle device

Sanhua Electronic expansion valve

Water pump brand

Shimge built-in Circulation Pump

Operating water temp. (℃)

9～60℃

Domestic Water Circulation Split Heat Pump (VET - 1.5 HP)

Model

VET - 1.5 HP

Heating capacity (kW)

5.2

Input power (kW)

1.30

COP

4.00

Rated current (A)

5.93

Max input power (kW)

1.75

Max current (A)

8.0

Rated outlet water temp. (℃)

55

Highest outlet water temp.(℃)

60

Power supply

220V/1Ph/50Hz

Anti-electric shock Rate

I

IP Grade (Level of protection)

IPX4

Refrigerant

R410A

Operation Ambient Temp. (℃)

-7～43

Production capacity (L/H)

150

Water connection

DN20

Water circulation （m³/H）

0.86

Water pressure drop （kPa）

25

Noise (dB(A))

≤50

Net weight/Gross weight(kg)

52/60

Body size(W*D*H)

956×350×550

Loading QTY(20GP/40GP/40HQ)

90/192/192

Compressor type/QTY

GMCC

Condensor type

High efficiency tube in shell heat exchanger

Defrosting

By Sanhua four-way valve

Throttle device

Sanhua Electronic expansion valve

Water pump brand

Shimge built-in Circulation Pump

Operating water temp. (℃)

9～60℃

Domestic Water Circulation Split Heat Pump (VET - 2 HP)

Model

VET - 2 HP

Heating capacity (kW)

8.0

Input power (kW)

1.80

COP

4.44

Rated current (A)

8.17

Max input power (kW)

2.48

Max current (A)

11.5

Rated outlet water temp. (℃)

55

Highest outlet water temp.(℃)

60

Power supply

220V/1Ph/50Hz

Anti-electric shock Rate

I

IP Grade (Level of protection)

IPX4

Refrigerant

R410A

Operation Ambient Temp. (℃)

-7～43

Production capacity (L/H)

230

Water connection

DN20

Water circulation （m³/H）

1.20

Water pressure drop （kPa）

30

Noise (dB(A))

≤51

Net weight/Gross weight(kg)

60/70

Body size(W*D*H)

1006×350×600

Loading QTY(20GP/40GP/40HQ)

90/192/192

Compressor type/QTY

GMCC

Condensor type

High efficiency tube in shell heat exchanger

Defrosting

By Sanhua four-way valve

Throttle device

Sanhua Electronic expansion valve

Water pump brand

Shimge built-in Circulation Pump

Operating water temp. (℃)

9～60℃
